AutoSlide Ultimate Motion Sensor Package

The AutoSlide Ultimate Motion Sensor Package is a pre-packaged automatic door solution providing an array of activation options to use. The package comes with the Autoslide standard automatic door system as well as wireless wall buttons, wired motion sensors, and remote controls. This option was designed to automate a sliding door where convenience and accessibility are the focus.

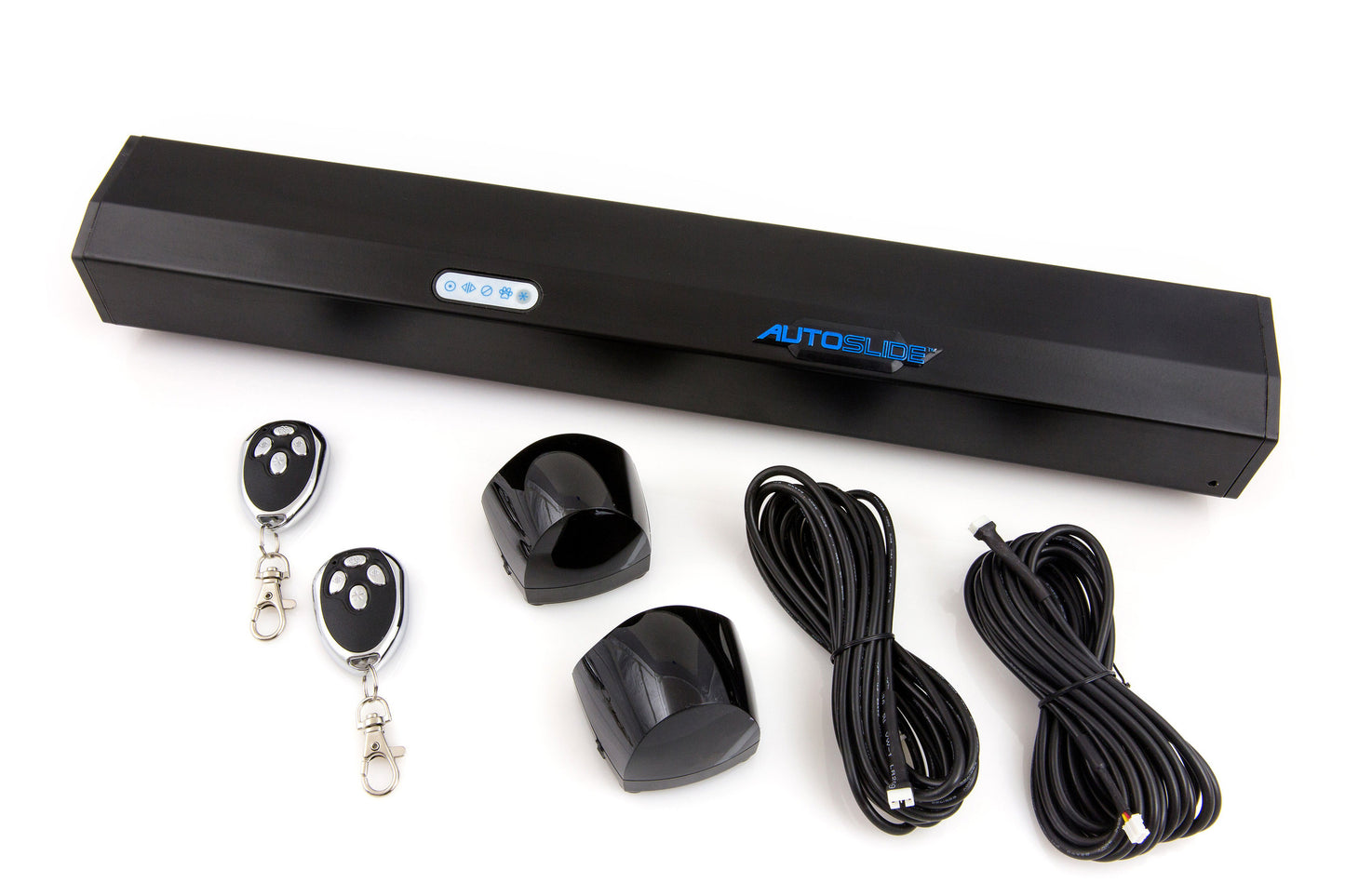

Autoslide Ultimate Bundle Includes

• One AutoSlide drive system with aluminum cover
• One L Mount Bracket
• Two Wall Mounted Wireless Push Buttons
• Two Hardwired IR Sensors
• Two Four Button Remote Key Fobs
• One Low voltage plug-in power pack
• Two 20" tracks with assembly kit
• Friction Tester
• Installation screws and tool packet
• Virtual instruction booklet

Technical Specifications

Product Code: AS011UBB (black), AS012UBW (white)
Maximum Drag Weight: 12 lbs.
Available Colors: Black (UPC 859807002065) or White (UPC 859807002072)
Maximum Door Width: 38 inches with included tracks (additional width possible with the purchase of Extension Rack)
Safety Auto-Reverse: Yes
Automatic Lock: No
Fail-Safe: Yes
Warranty: Two Year

Autoslide Physical Size

Weight: 8 lbs
Length: 19 inches (490mm)
Height: 2.75 inches (70mm)
Width: 2.5 inches (65mm)
