AutoSlide Elite iLock Automatic Door System

The AutoSlide Elite iLock Automatic Door System has the extra power needed to automate large and heavy sliding doors. This system uses the Autoslide Elite iLock Motor, which provides security through an automatic lock and unlocks function. To help provide the extra power, an upgraded power supply is provided with increased amperage.

Use the Elite iLock System in Red Mode (Secured) when you don't want unwanted guests entering your home or office. The outside (non-secure) controls will be deactivated, preventing a passerby from opening your door. The Elite iLock Motor will give extra power by enabling Heavy Door Mode, providing up to 55 pounds of pull force.

The AutoSlide Elite iLock System was designed to automate heavy sliding patio doors such as the heavy hurricane doors found in Florida. The system consists of an electric Elite iLock Motor with automatic locking technology, an electronic controller, two teethed tracks, and a low-voltage DC power supply encased in an aluminum slimline housing. The door is activated by the specially designed wall-mounted wireless push buttons that are installed on both sides of the opening.

The AutoSlide Elite also includes an internal Bluetooth module for app control within up to 100' of the door. A number of other activation devices, such as motion sensors and remote controls, are available at an extra cost.

Autoslide Elite iLock System Includes

• One AutoSlide drive system with Elite iLock Motor
• One Aluminum cover
• Internal Bluetooth Module for control via Autoslide app (within 100')

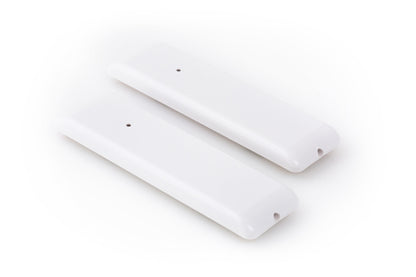

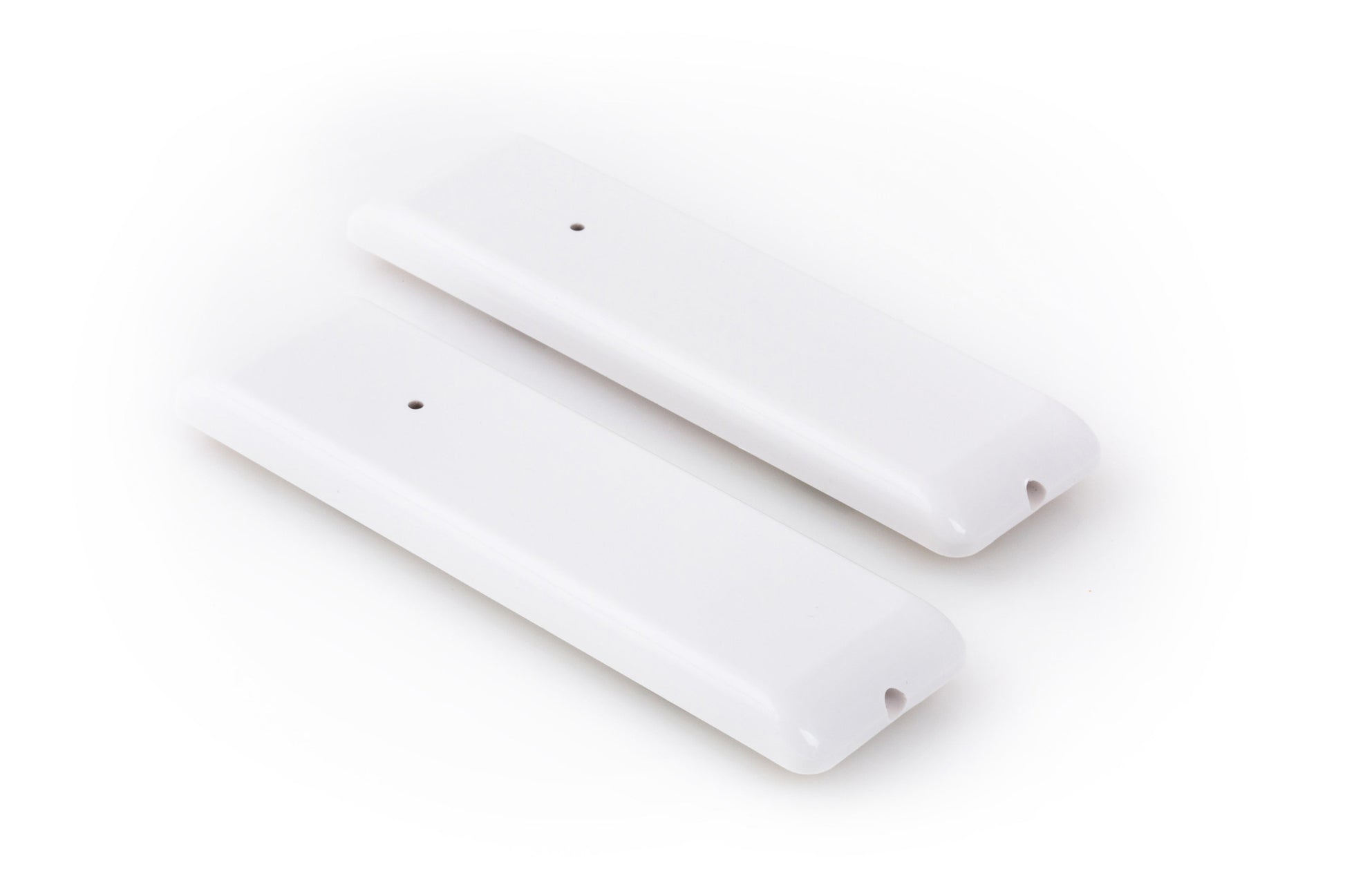

• Two Wall Mounted Wireless Push Buttons
• One Low voltage plug-in power pack
• Two 20" racks with assembly kit
• Friction Tester
• Installation screws and Allen key
• Instruction booklet & Installation DVD

Technical Specifications

Product Code: ASE01BCE (black), ASE02WCE (white)
Maximum Drag Weight: 35 lbs.
Color: Black (UPC 647923341379) or White (UPC 647923341386)
Maximum Door Width: 38 inches with included tracks (additional width possible with the purchase of Extension Rack)
Power Supply: 110-240 VAC, 24 VDC Power Pack
Safety Cut Off: Yes
App Control: Internal Bluetooth Module
Warranty: 2 year

Autoslide Physical Size

Weight: 6 lbs.
Length: 19 inches (490mm)
Height: 2.75 inches (70mm)
Width: 2.5 inches (65mm)
