AutoSlide Elite Automatic Sliding Door System

The AutoSlide Elite Automatic Sliding Door System is an upgrade to the original AutoSlide system. This system includes our heavy-duty Elite Motor, which increases the amount of pull force by more than four times. To engage the most power out of the motor, use Dip Switch #7, Heavy Door. This provides the added power needed to move the heaviest doors, such as hurricane impact patio doors or solid core panels.

The AutoSlide Elite maintains all the same functional attributes as the standard AutoSlide. It attaches universally to residential sliding patio doors, pocket doors, and barn doors. In addition, this system is able to be used in light commercial applications such as doctor offices, conference rooms, and public restrooms to name a few.

AutoSlide Elite fits into the same compact housing as the standard AutoSlide. The system consists of an Autoslide Elite Motor with an electronic controller, two teethed tracks, and a low-voltage DC power supply that plugs into your nearby standard outlet.

This AutoSlide Elite system will move a panel that has up to 35 pounds of drag force, which is the force required to push and pull the door back and forth. This measurement can be tested using a digital fish scale or luggage scale.

The AutoSlide system is activated by the specially designed wall-mounted wireless push-buttons that are installed on both sides of the opening. The AutoSlide Elite also includes an internal Bluetooth module for app control within up to 100' of the door. Alternative activation options, such as motion sensors, are available at an additional cost.

Autoslide Elite Package Includes

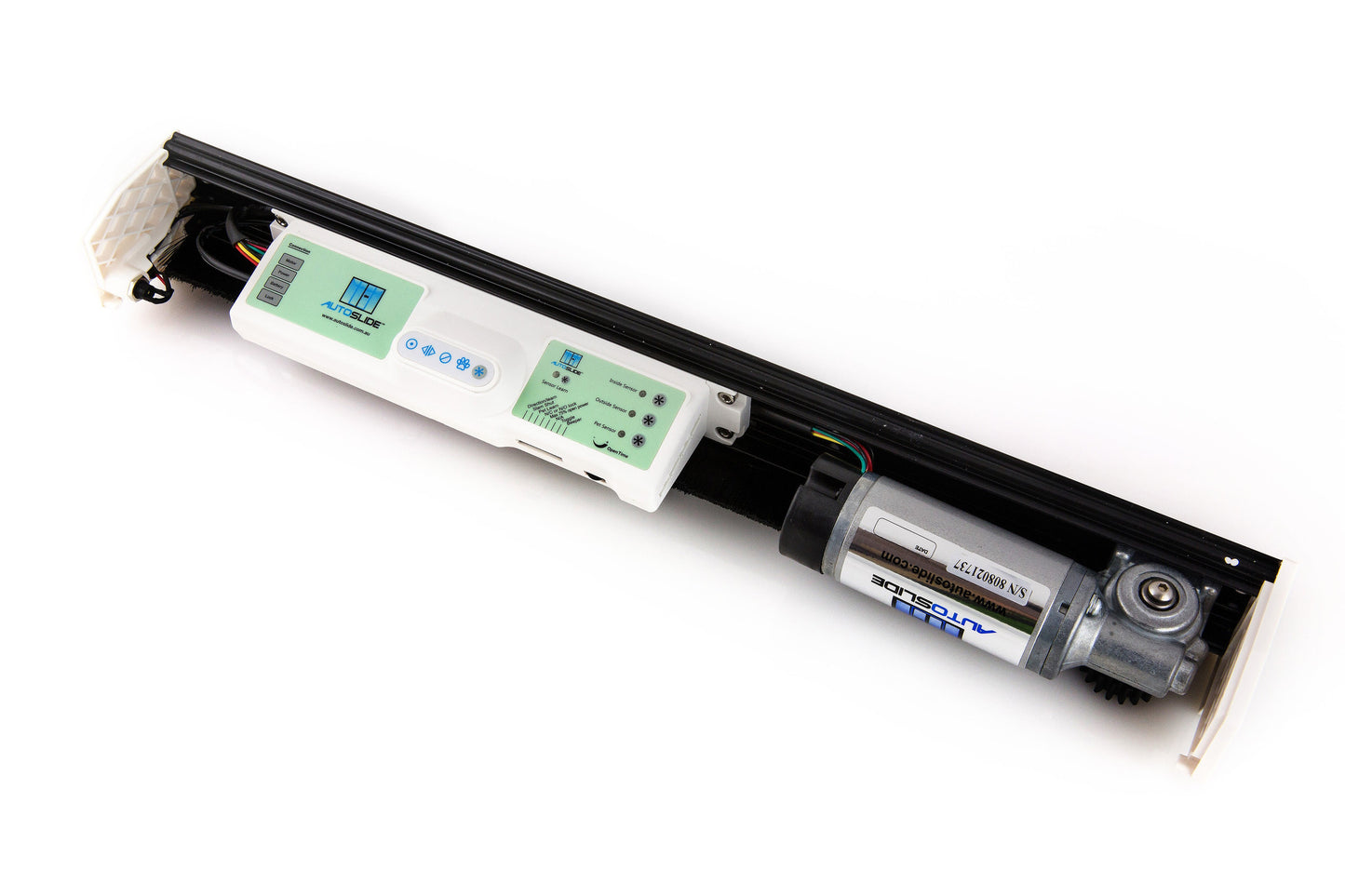

• One AutoSlide drive system with Elite Motor with aluminum cover

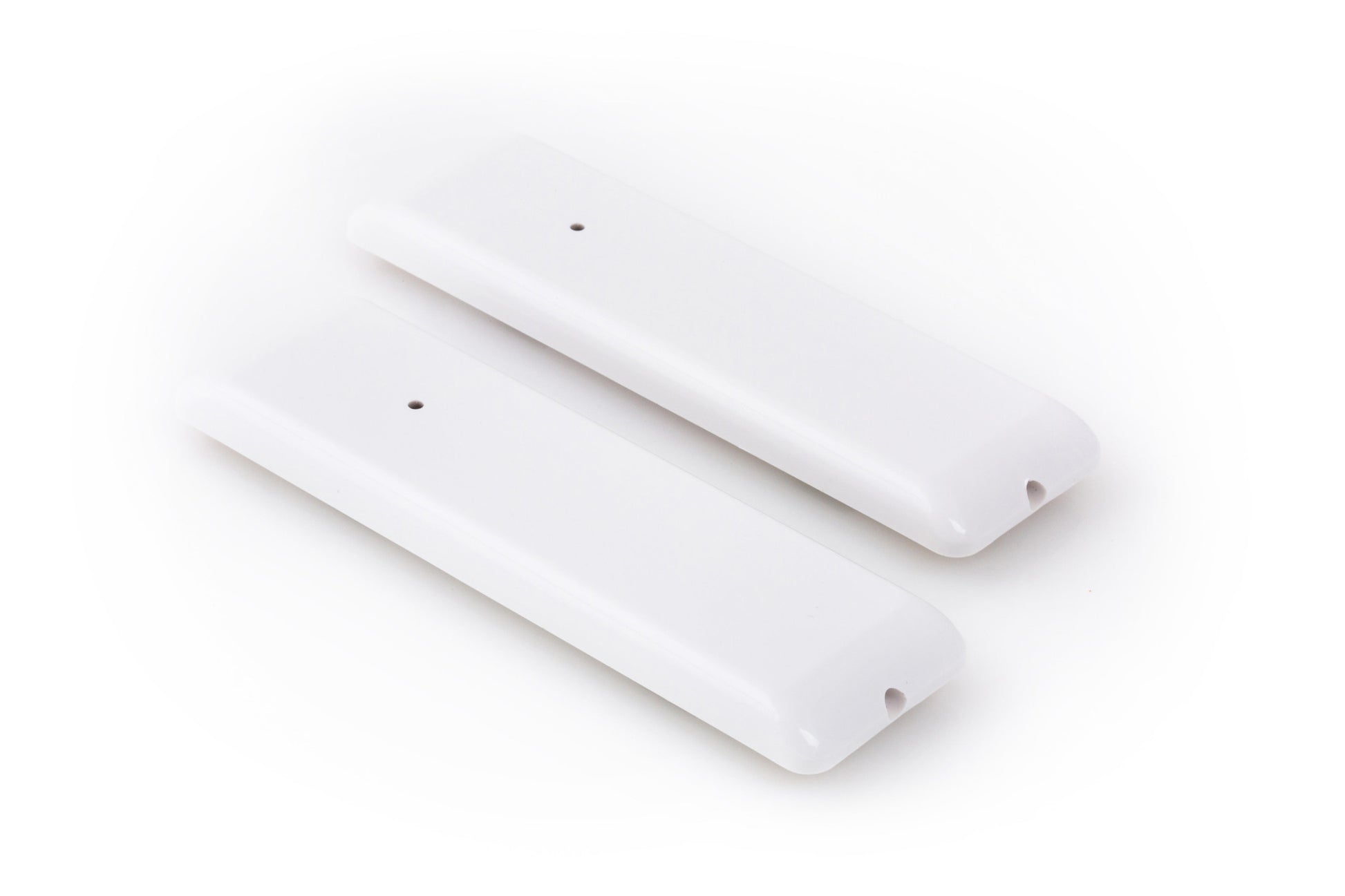

• Two Wall Mounted Wireless Push Buttons
• Internal Bluetooth Module for control via Autoslide app (within 100')
• One low-voltage plug-in power pack
• Two 20" racks with assembly kit
• Installation screws and tool packet

Technical Specifications

Product Code: ASE01BC (black), ASE02WC (white)
Maximum Drag Weight: 35 lbs.
Color: Black (UPC 647923341171) or White (UPC 647923341188)
Maximum Door Width: 40 inches with included tracks (additional width possible with the purchase of Extension Rack)
Power Supply: 110-240 VAC, 24 VDC Power Pack
Safety Auto-Reverse: Yes
Automatic Lock: No
Fail-Safe: Yes
App Control: Internal Bluetooth Module
Warranty: 2 year

Autoslide Physical Size

Weight: 6 lbs.
Length: 19 inches (490mm)
Height: 2.75 inches (70mm)
Width: 2.5 inches (65mm)
